Persistence Vault

The persistence vault is the persistent layer where data is stored. Amongst it's roles and responsibilities:

  • The persistent store implementation is one of the ones supported by GORM
    • Terminus ships by default with a PostgreSQL data store
  • Supports multi-tenancy and multi-product logical segregation via column keys
  • All data is encrypted and there is no indication of what the data stored is
  • It exposes the low-level API for the Proxy to interface with the persistence
  • Can implement additional encryption at rest if supported by the store implementation
  • It is not business model aware
  • It's scalability, partitioning and indexing capabilities is directly depending on the choice of store

It is written in Go.

Interaction with the Persistence Vault​

Leverages GORM to interface with the database. Currently is configured to use PostgreSQL but supports any persistence store supported by GORM.

Implements AES encryption against the data store.

⚠️ IMPORTANT: changes on encryption keys of the logical encryption layer will render the data stored useless.

Configuration​

The specific configuration depends on the data store.

By default it is PostgreSQL and gets configured via Docker Compose and environment variables.

Schema​

Terminus' schema is transparently deployed by the Vault Service layer via GORM

It comprises one data table with the following structure:

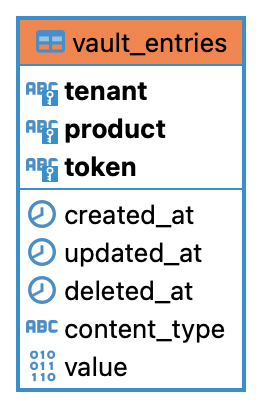

Entries Table

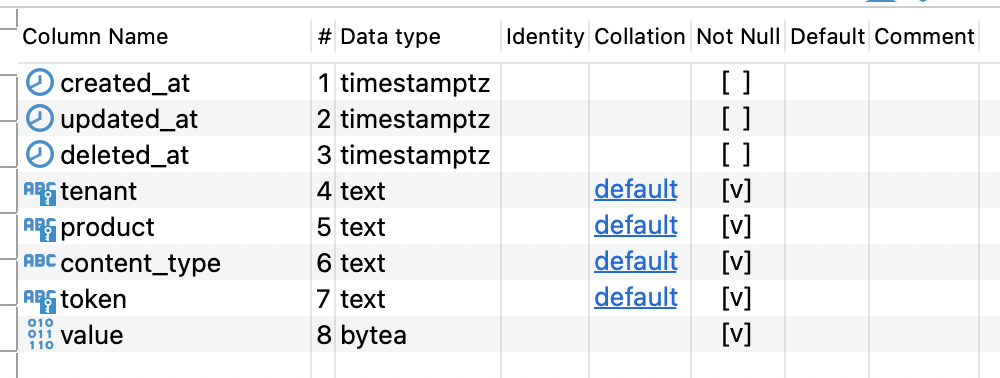

Entries Table Columns

With:

  • token being the entry identifier (it's the ID that gets returned on creation and is required for retrieval)
  • value being where the data is stored transparently
  • content_type being the mime-type of the stored data for retrieval (json, xml, binary, etc.)
  • tenant, product being the keys for multitenancy indicating Terminus' customer and the configured product
